01Autodesk Vault add-in for Inventor workflows

Every componentaccounted for.

Select an Inventor assembly. CADwright totals quantities across the full BOM, checks each component for its drawings, flags what’s missing, and stamps selected PDFs with the right job data—all inside Vault.

Request a demoExplore the Vault add-in
Illustrative product workflowCW / 01 · 08.5 sec
An Inventor assembly is traversed, its component quantities are consolidated, BOM properties are made available to copy to Excel, drawings are checked, and selected PDFs receive project, used-on, and quantity stamp data. Eighteen selected drawings are then sent to the workshop printer while two missing drawings remain flagged for review.

02 Products

From CAD data to drawing release.

Print Manager and BOM Data Manager use the same Inventor assembly data to remove repetitive steps between design and manufacture—all within the CADwright Vault add-in.

Built around
Autodesk Vault
Autodesk Inventor

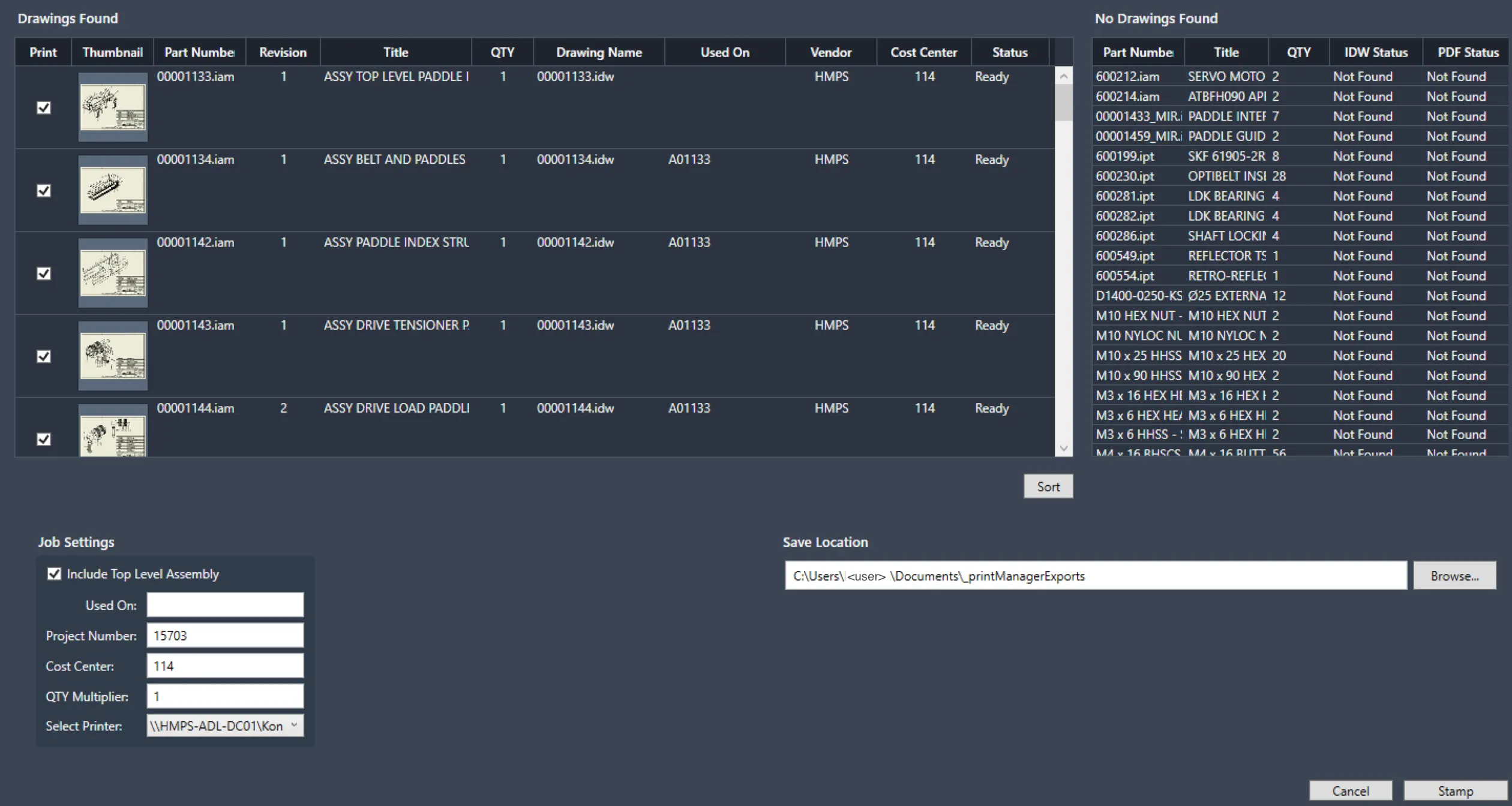

Module 01Drawing release

Stop fighting the standard plot manager. Our tool provides a clear, visual workflow that catches errors before they happen, with flexible watermarking to ensure the workshop gets the right data, every time.

Illustrated reconstruction of the current Print Manager interfaceDrawing validation · Job stamping · Print preparationFIG 02.1 / PRINT MANAGER
CADwright / Print Manager
View actual product interface
01

Drawing Validation

See which selected components have linked PDFs and which are missing IDW or PDF files before preparing the print set.

02

Job-Specific Stamping

Automatically apply dynamic watermarks—like project numbers and multiplied quantities—directly to outputs without modifying master CAD files.

03

Reliable Automation

Choose the rows you need, stamp the downloaded PDFs, and send the prepared drawing set to the selected printer from one controlled workflow.

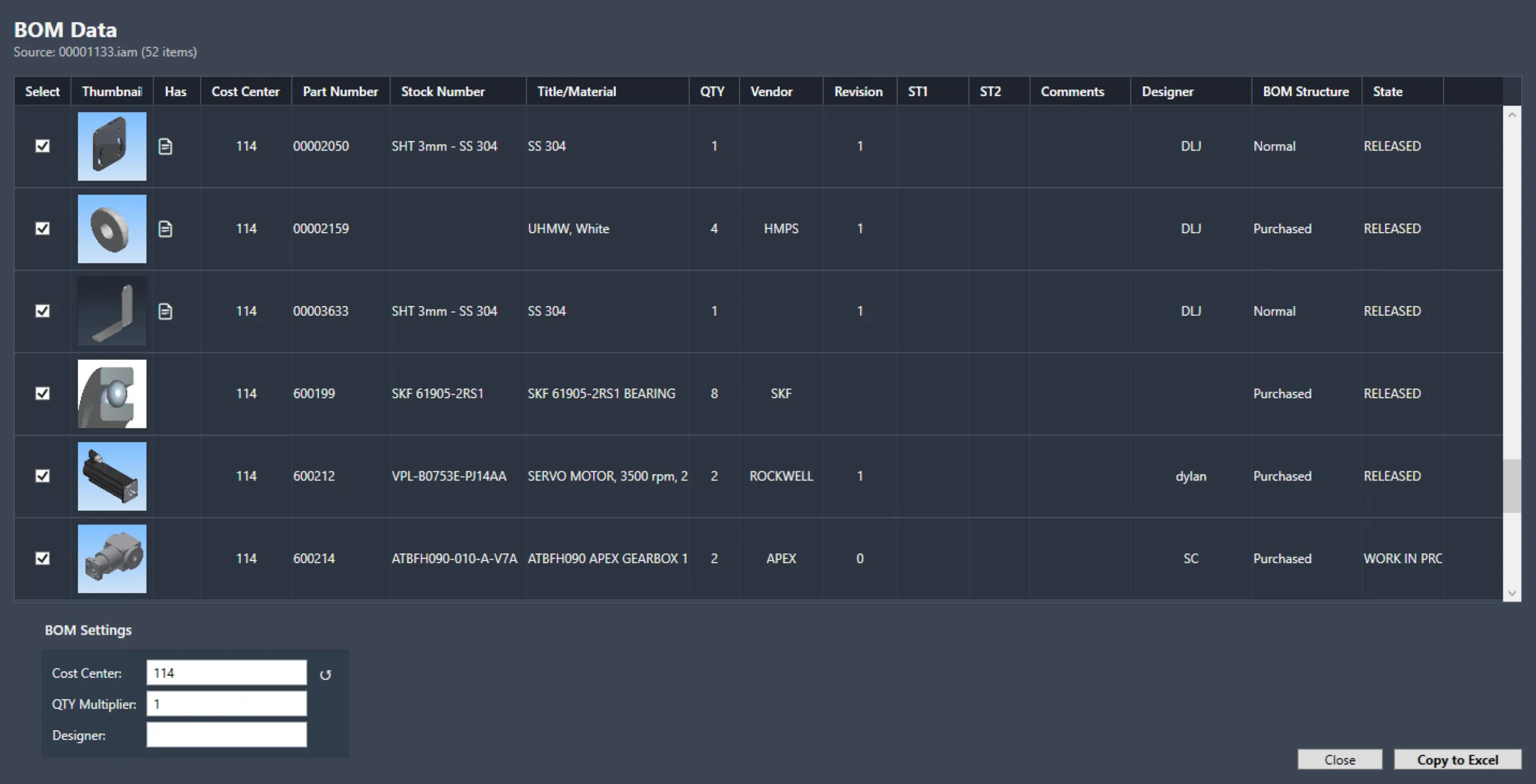

Module 02Component data

BOM Data Manager

Visualise, validate, and export your Bill of Materials without ever leaving the Vault environment.

Illustrated reconstruction of the current BOM Data Manager interfaceConsolidated quantities · Drawing status · Component propertiesFIG 02.2 / BOM DATA
CADwright / BOM Display
View actual product interface
01

Lifecycle Visibility

Review lifecycle state alongside the component properties and consolidated quantities displayed by the BOM.

02

Consolidated Review

Review drawing availability, lifecycle state, quantities, and component properties from one consolidated BOM view.

03

Export Data

Copy the consolidated BOM data in the column order your team needs, ready to paste into an existing Excel worksheet.

03 Why CADwright

Want more from your software?

Purpose-built Autodesk workflow tools remove the repetitive release work that standard processes leave behind.

01 Release

Release to Manufacture Faster

Eliminate the “last-mile” bottleneck. Batch export, name, and package your drawing sets in seconds, not hours.

02 Automation

Reduce Manual Labour

Stop the endless clicking. Our tools handle property syncing and data entry automatically, so you don’t have to.

03 Control

Simplify Your Process

Compress complex multi-step workflows into a single action. Fewer steps mean fewer opportunities for error.

04 In use

Customer testimonial

CADwright’s tools have made a real difference to our HMPS operations. Both are well-built and fit seamlessly into our existing Vault and Inventor workflow.
Pieter HugoNational Design ManagerExport Park · Adelaide, SA
OrganisationHMPS Propac

05 Next step

Ready to reclaim yourengineering time?

Stop fighting manual data entry and start focusing on design. Whether you need the Vault add-in or a purpose-built automation tool, let’s discuss where CADwright can remove friction from your workflow.
